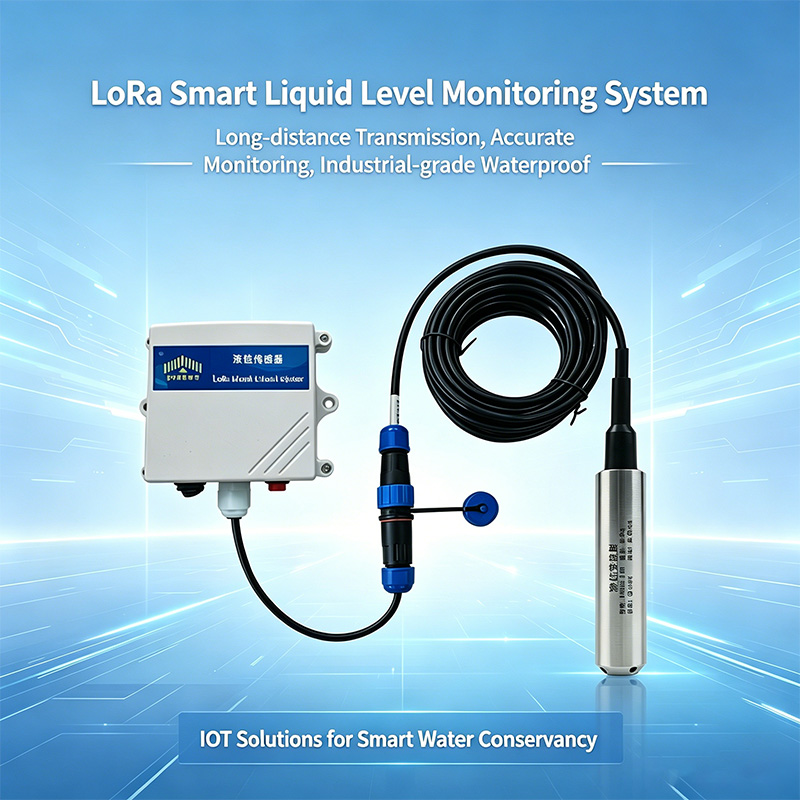

LoRaWAN submersible level sensors feature low power consumption, long transmission range and wiring-free installation, and are widely applied in smart water management, water conservancy and environmental protection, variable-frequency water supply, chemical industry, smart construction sites and other scenarios. The following five key points should be prioritized during selection.

1. Confirm Measuring Range and Accuracy Precisely

Submersible level sensors work based on the hydrostatic pressure principle. The measuring range shall cover the actual water depth with a proper margin. The standard common range is 0~5 meters, and customized ranges of 10 meters, 20 meters or even deeper are available upon request.

In terms of accuracy, most mainstream models deliver ±0.5% F.S, which meets the requirements of most industrial and environmental monitoring applications. For higher precision demands, select models with an accuracy of ±0.25% F.S. Never choose an undersized range, which may cause damage due to overpressure, or an oversized range that results in wasted resolution.

2. Check Ingress Protection Rating and Materials

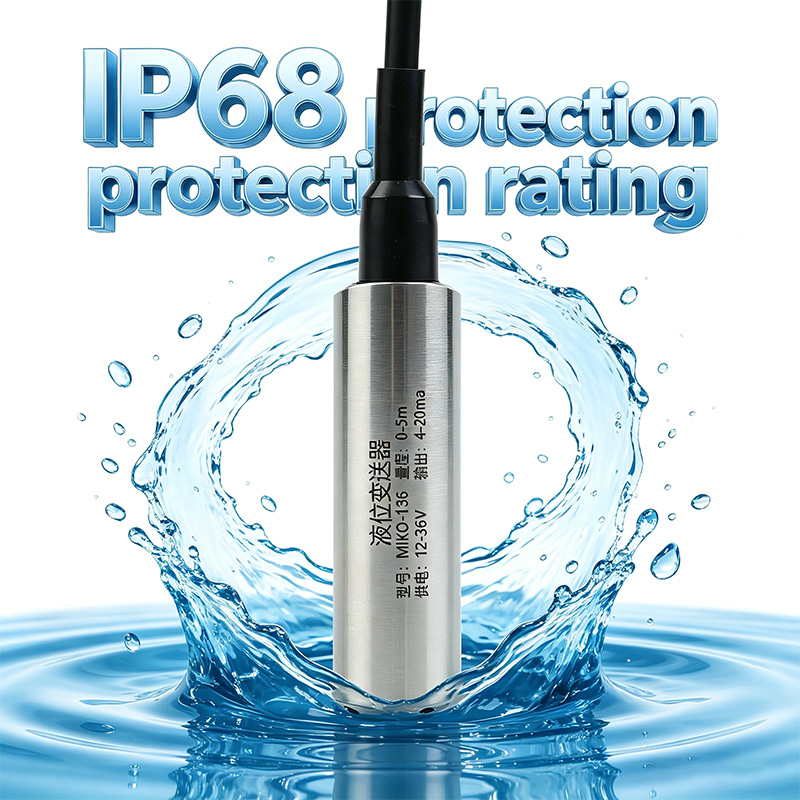

Since the sensor is immersed in liquid for long-term operation, the probe must reach IP68 ingress protection rating to guarantee reliable underwater sealing. High-quality products adopt rubber ring sealing design for direct submersion. Internal anti-condensation treatment is also essential to prevent circuit failures caused by condensed moisture.

Wetted parts are generally made of 304 or 316 stainless steel, which need to be compatible with the measured medium. For highly corrosive liquids, models equipped with PTFE isolation diaphragms are recommended.

3. Match Communication Range and Frequency Band

Long transmission distance and low power consumption are the core advantages of LoRaWAN. Verify that the supported frequency band complies with local regulations. CN470~510MHz is the standard band for China.

The typical communication range reaches 2 to 3 kilometers indoors or in urban areas, and 5 to 6 kilometers under outdoor line-of-sight conditions. The receiving sensitivity can be as low as -140dBm (SF12). For large-scale deployment such as reservoirs and pipe networks, ensure the distance between sensors and gateways is within the effective coverage. Add extra gateways when necessary.

4. Select Power Supply Mode and Evaluate Power Consumption

Consider the on-site power conditions before making a choice. Two mainstream power supply options are available: DC 12~24V power adapter, or high-capacity lithium thionyl chloride battery.

Battery-powered sensors adopt low-power design with periodic sleep and wake-up functions. With a typical data reporting interval of once per hour, the service life can last for several years, making it ideal for remote well stations without mains power. For adapter-powered units, the transmit current is about 20~25mA @24V and the receive current is around 5mA, maintaining overall low power consumption.

5. Verify Protocol Compatibility and Maintainability

Compliance with the standard LoRaWAN protocol ensures seamless connection with mainstream gateways and network servers. Confirm the sensor supports standard LoRaWAN protocol as well as OTAA and ABP activation modes, and is compatible with mainstream frequency bands.

Easy maintenance is another vital factor. Check if the probe supports quick replacement without recalibration, which greatly reduces on-site maintenance workload. In addition, confirm whether the manufacturer provides hardware and software customization services if additional functions are required.

Summary

When selecting a LoRaWAN submersible level sensor, focus on the five core factors: appropriate measuring range and accuracy, IP68 protection and medium-compatible materials, matched frequency band and communication coverage, power supply suitable for on-site operation, and standard protocols for system interoperability.

Make a comprehensive assessment according to specific application scenarios including deep wells, water tanks, river channels and sewage treatment systems. This approach effectively avoids improper selection and ensures long-term stable operation of the whole system.https://www.zonewuiot.com/wireless-iot-sensors_c13
