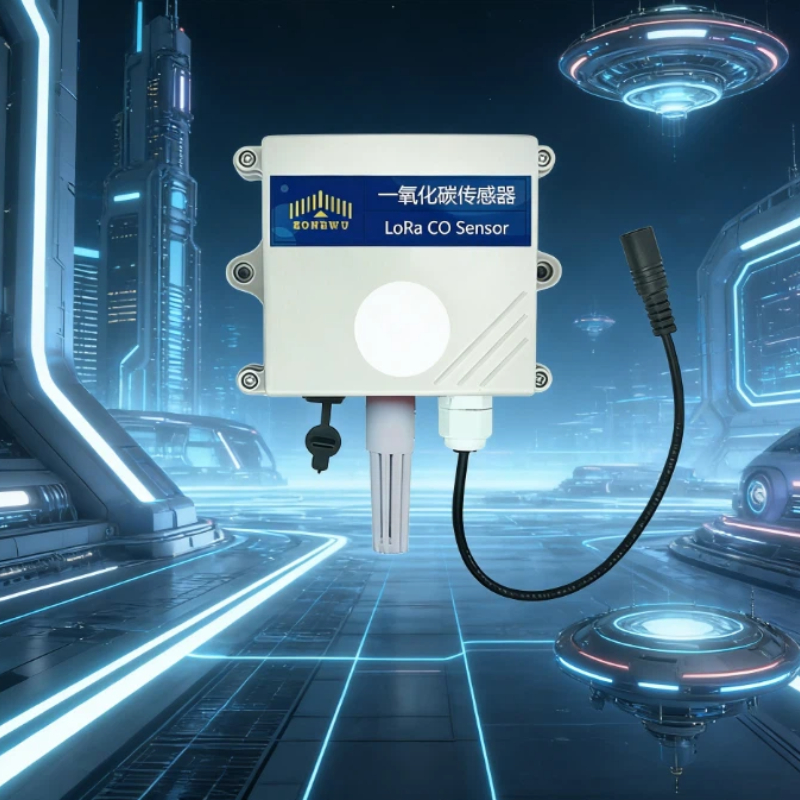

LoRaWAN carbon monoxide(CO) sensor is a new wireless IoT gas sensor that integrates collection, monitoring, and transmission. Using a three electrode electrochemical gas sensor and high-performance microprocessor to monitor the concentration of carbon monoxide in the environment. Built in temperature and humidity sensors can be used to monitor temperature and humidity values in the environment. It has the characteristics of high sensitivity, high resolution, small size, low power consumption, high stability, and strong anti-interference ability. Supports LoRaWAN protocol for wireless long-distance transmission, suitable for industrial safety, environmental monitoring, energy storage security and other fields.
Model No.:
LW307D-COUse:
Nitric oxide monitoringPower Supply:
5~28VDCLoRaWAN Mode:
OTAA Class A/C (Default: Class C)Shell Material:
ABSCertificates:
CE,ROHS,FCC,ISO and 11 patents certificationsCustomized Support:
OEM, ODMWarranty:
1 YearIndustrial CO gas sensor nitric oxide detector Sensor
Cut the tangled wires and bid farewell to limited monitoring ranges! Our LoRaWAN CO & Nitric Oxide Sensors deliver hassle-free, long-distance gas detection that empowers industrial managers to safeguard their workshops, energy storage facilities and environmental monitoring zones with zero installation fuss.
LoRaWAN CO & Nitric Oxide Sensors – Core Features:
1.Integrated wireless IoT solution combining data collection, real-time monitoring and long-range transmission.
2.Equipped with three-electrode electrochemical gas sensors and high-performance microprocessors for accurate CO and nitric oxide concentration detection.
3.Built-in temperature and humidity sensors for comprehensive environmental parameter monitoring.
4.Key product strengths: high sensitivity, high resolution, compact size, low power consumption, stable performance, strong anti-interference capability.
5.Complies with standard LoRaWAN protocol to enable wire-free, long-distance data transmission.
6.Suitable for long-term deployment in industrial safety, environmental monitoring and energy storage security scenarios.
CO Sensor Specification:
|
Power Supply |
5~28VDC |
|
Weight |
120g |
|
Operating Emperature |
-20℃~50℃ |
|
Humidity: 15%~ 90% RH without condensation NOTE: It is not recommended to stay in a high humidity (95%) environment for more than half a month |
|
|
Measuring Principle |
Electrochemical Principle |
|
Measuring Range |
CO: 0-1000 ppm |
|
Resolution Ratio |
CO: 1 ppm |
|
Temp.and Humi. Sensor
|
Temp Range:-40~+80 ℃ |
|
Accuracy:±0.3 ℃ |
|
|
Humi Range:0~99.9 %RH |
|
|
Accuracy:±2 %RH |
|
|
Sensor Lifespan |
< 2 years |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
Mode |
OTAA Class A/C(Default: Class C) |
|
Data Collection Cycle |
10s(Default) |
|
Reporting cycle |
5 min(Default reporting cycle) Report after preheating for 3 minutes when powered on |
|
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI:0000000000000001 DevEUI:aaaa202404150001 AppKey:00001111222233334444555566667777 MAC Version:LoRaWAN 1.0.3 |
Packaging:
Single gross weight: 0.600 KG
Single package size: 23X20X5 cm
Application:
The High precision CO gas sensor also widely used for gas monitoring of Chemical production, Ward monitoring, Vegetable greenhouse, Livestock and poultry farms, Tunnel monitoring, Cold chain logistics vehicle, Cold storage monitoring, Biosafety laboratory.
Certifications:
1.We are a leading gas sensor manufacturer and exporter in China, with over 10 years of professional experience in the industry.
2.Our CO gas sensor products have obtained CE and ROHS certifications, fully meeting international quality and environmental standards.
3.We adopt advanced production technology and strict quality control systems to ensure the high precision, stability and reliability of each CO gas sensor.
4.Our CO gas detection solutions are widely applicable to multiple scenarios, including industrial safety monitoring, indoor air quality management and automotive emission testing.
5.Backed by a professional R&D team and comprehensive after-sales service, we have built long-term cooperative relationships with clients from Europe, Asia, the Americas and other regions.
