IoT product and technology solution provider

Long Term Monitoring LoRaWAN Solar Water Quality PH Sensor

Solar pH sensor is a water quality monitoring device powered by solar energy, which can wirelessly, remotely, and accurately monitor the pH value of water in real time. It is widely used in environmental protection, aquaculture, and other fields.
  • Model No.:

    LW102S-PH
  • Use:

    Used for monitoring the acidity and alkalinity of water quality
  • Power Supply:

    Solar Powered + Li-ion Battery
  • Measuring Accuracy:

    ±0.1,±0.3℃
  • LoRaWAN Mode:

    OTAA Class A/C
  • Shell Material:

    ABS
  • Certificates:

    CE,ROHS,FCC,ISO and 11 patents certifications
  • Customized Support:

    OEM,ODM
  • Warranty:

    1 Year
  • Product Detail

Long Term Monitoring LoRaWAN Solar Water Quality PH Sensor

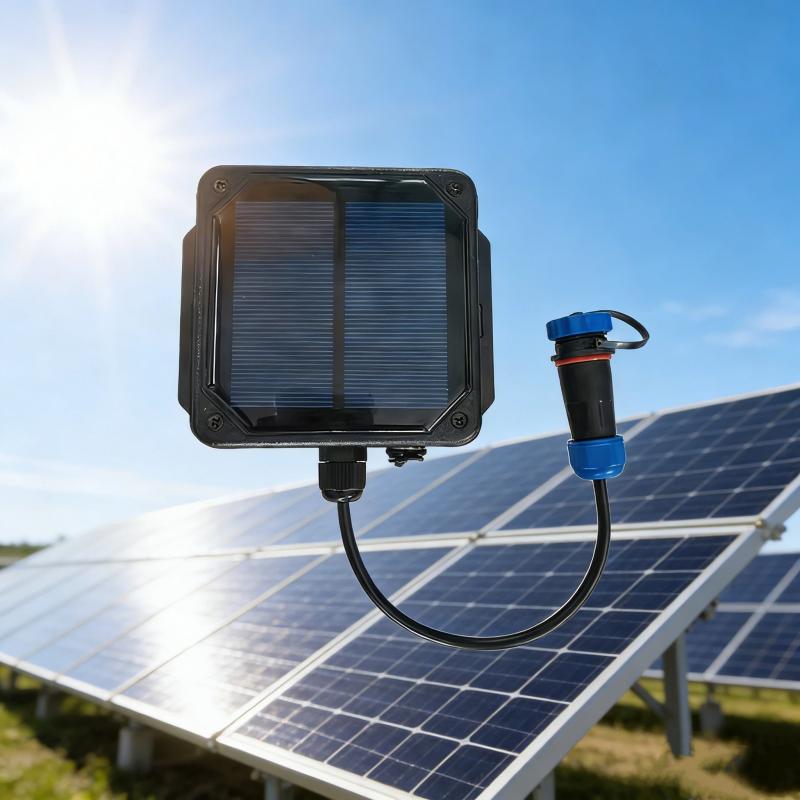

The solar powered pH sensor is an intelligent monitoring device that integrates solar power supply and wireless communication technology. It measures the acidity and alkalinity of water bodies through high-precision electrodes and achieves energy self-sufficiency through solar panels, freeing itself from dependence on traditional electricity and supporting long-term outdoor unmanned work.



This device is widely used in aquaculture, environmental monitoring, sewage treatment, and agricultural irrigation. Its remote real-time data transmission and low maintenance characteristics greatly improve the efficiency and reliability of water quality monitoring, providing sustainable intelligent monitoring solutions for outdoor and non electrified areas.

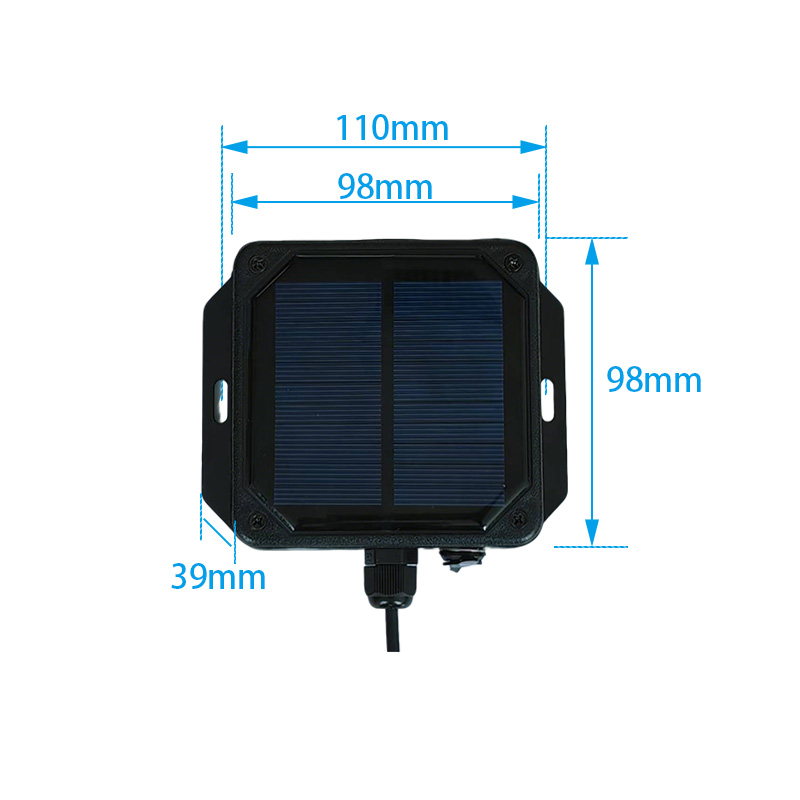

Water Quality Solar PH Sensor Specification:


Power Supply Solar Powered + Li-ion Battery
LW102S-PH Weight 230g
Measuring Principle

Glass Electrode Method

Operating Temperature
0~50℃,≤0.2MPa
Measuring Range
0~14.00PH
Accuracy

±0.1, ±0.3℃

Resolution Ratio
0.01PH, 0.1℃
Temperature Compensatio
Automatic temperature compensation (Pt1000)
Electrode usage cycle 6-12 Months
Temperature Compensation Automatic temperature compensation (Pt1000)

Transmitter Line Length

Default 5m (other lengths can be customized)
Frequency CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Mode OTAA Class A/C
Reporting cycle 30 min(Default)
Communication Protocol
LoRaWAN,LoRa TDMA Networking
Equipment information
(Reference)
AppEUI: 0000000000000001
DevEUI: aaaa202404150001
AppKey: 00001111222233334444555566667777
MAC Version: LoRaWAN 1.0.3


Packaging:


Single gross weight: 1.200 KG

Single package size: 37X26X5 cm



Product Description:




Customer on-site examples:

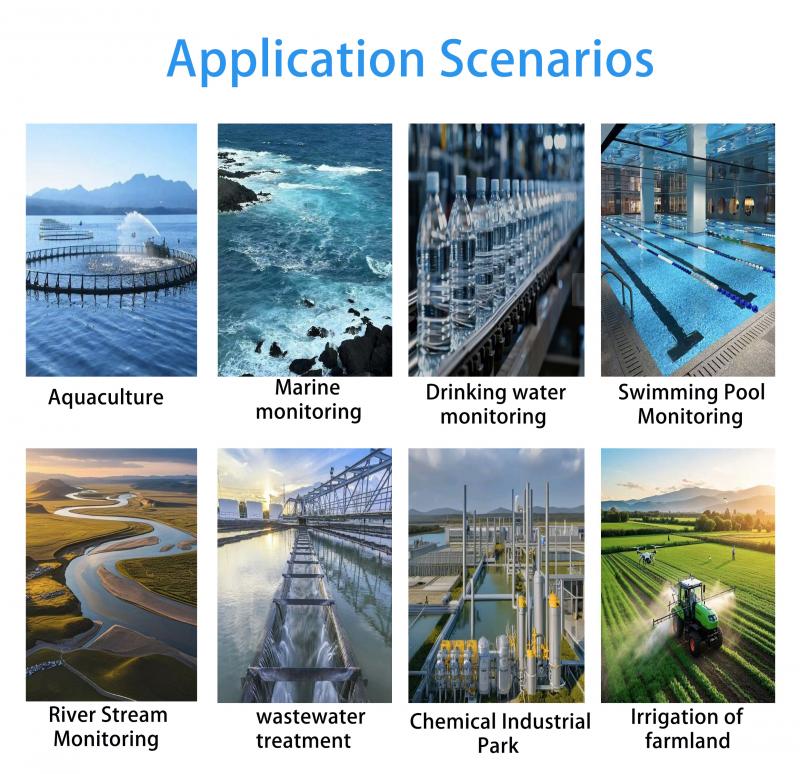

Application:


Solar pH sensors are widely used in fields such as aquaculture, environmental monitoring, agricultural irrigation, and sewage treatment. Its characteristics of no wiring and solar power supply make it particularly suitable for monitoring scenarios in the wild, without mains power supply, or long-term unmanned operation. It enables remote, real-time, and continuous monitoring of water pH values, helping with intelligent management and timely warning.

applications of versatile Residual Chlorine Sensor



Certifications:


We are best solar water quality PH sensor manufacturer and exporter in China with more than 10 years. Our solar water ph sensor products are certified  with of CE, ROHS.



Production Process:



factory of water ec sensor manufacturer



Why choose us:


1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
