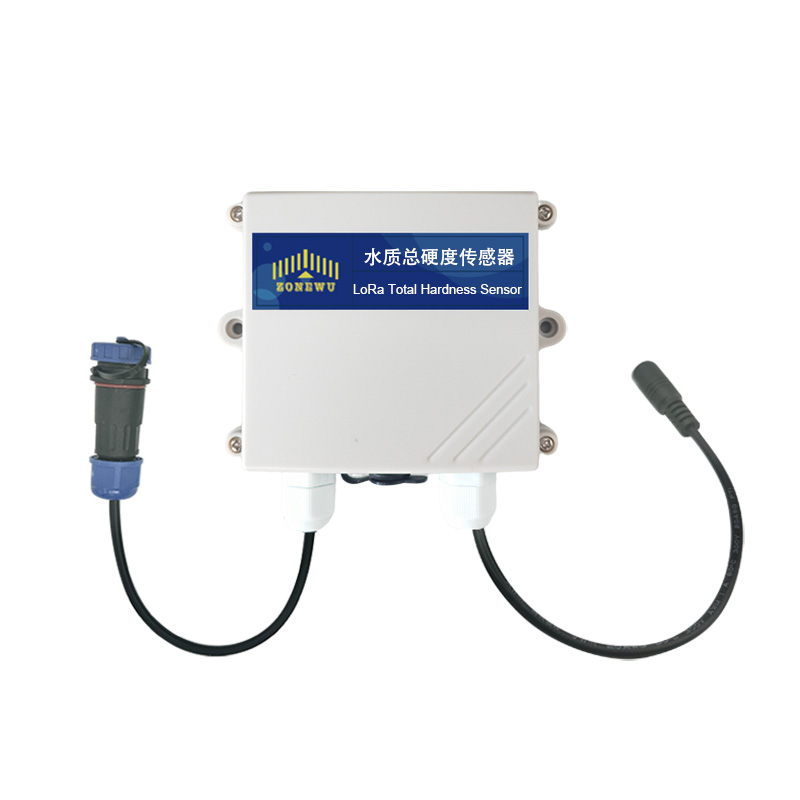

LoRaWAN Water Total Hardness Sensor for Aquaculture Hydroponics

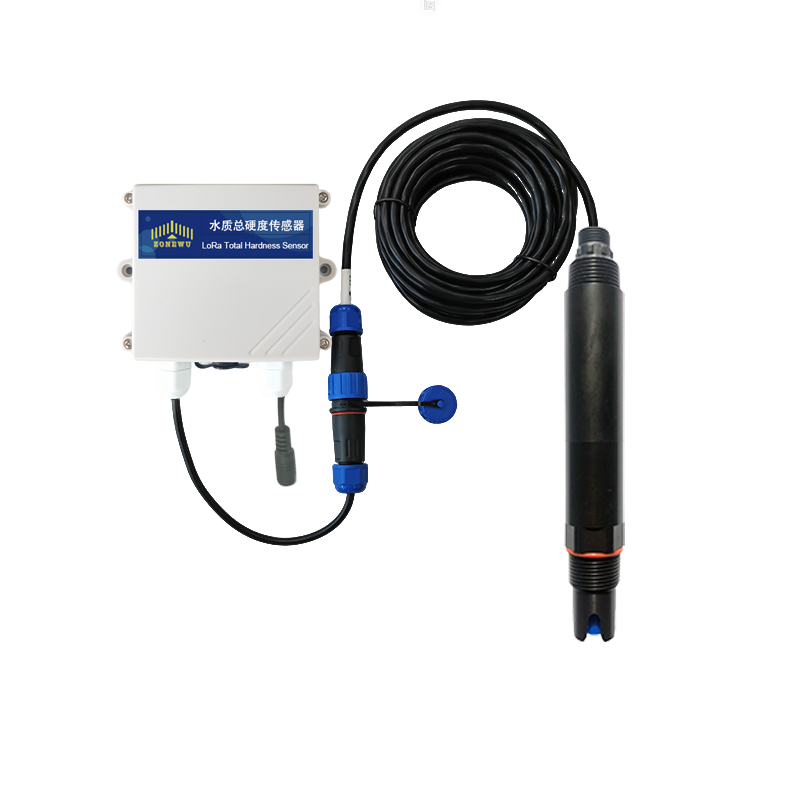

LoRaWAN water quality total hardness sensor is a type of sensor used to test the total hardness of water (measured as CaCO3), with automatic temperature compensation function, low environmental impact, and high measurement accuracy. Connect to the LoRaWAN collector through an aviation connector to achieve wireless communication. Widely used for online automatic continuous analysis and detection of water quality hardness in industrial wastewater, surface water, drinking water, seawater, and industrial production process control.
  • Model No.:

    LW118D-TH
  • Use:

    Water Quality Total Hardness monitoring
  • Power Supply:

    Battery or External DC
  • Measuring Accuracy:

    ±5%FS
  • LoRaWAN Mode:

    OTAA Class A/C
  • Shell Material:

    ABS
  • Certificates:

    CE,ROHS
  • Customized Support:

    OEM, ODM
  • Warranty:

    1 Year
  • Product Detail

LoRaWAN Water Total Hardness Sensor for Aquaculture Hydroponics



ZoneWu LoRaWAN total water hardness sensor enables real-time and remote water hardness monitoring through LoRaWAN wireless technology, realizing intelligent and automated water quality supervision.



1.Real-time monitoring: It accurately detects the total hardness value of water bodies continuously and ensures stable data output at all times.

2.Remote data transmission: Adopting LoRaWAN low-power wide-area network, it uploads monitoring data to the cloud platform over long distances without wiring.

3.Intelligent supervision: It supports automatic data collection, remote platform viewing and unified management, replacing manual on-site detection.

4.High efficiency & cost saving: It greatly improves water quality management efficiency and reduces labor, maintenance and construction costs.

5.Wide application: It is suitable for aquaculture, hydroponics, drinking water supply, industrial circulating water and other water environment scenarios.




Water Quality Total Hardness Sensor Specification:

Power Specifications

Rated Voltage:12VDC,Scope:DC10~28V

Rated input current: 500mA

Interface specification: DC 5.5mm × 2.1mm

(positive inside and negative outside)

Range and Resolution

01000.0mg/L

0.1mg/L,0.1

Temperature Compensation

Automatic temperature compensation (Pt1000)

Calibration Method

Two-point calibration

Accuracy

±10%;±0.3

Working Conditions

040℃≤0.2MPapH410

Electrode Usage Cycle

1~2 years

Transmitter Line length

Default 5m (other lengths can be customized)

Frequency

CN470/IN865/EU868/RU864/US915/AU915/

KR920/AS923-1&2&3&4

Mode

OTAA  Class A/C

Reporting cycle

10min(Default )

Communication Protocol

LoRaWAN,LoRa TDMA Networking

Equipment information

(Reference)

AppEUI331341E186891989

DevEUIaaaa202404150001

AppKey5572404c696e6b4c6f526132330313823

MAC Version: LoRaWAN 1.0.3


Packaging:


Single gross weight: 0.800 KG

Single package size: 32X14X9 cm


Product Description:




Application:


This durable industrial water Quality Total Hardness sensor is widely used to ensure safety and quality in diverse applications including aquaculture, marine monitoring, drinking water treatment, swimming pool operations, river/stream monitoring, wastewater treatment, chemical industrial parks, and farmland irrigation.

applications of versatile Residual Chlorine Sensor



Certifications:


We are one of the leading manufacturers and exporters of water quality sensors in China with over 10 years of experience. Our total hardness sensors are CE and RoHS certified.






Production Process:



factory of ph sensor manufacturer



Why choose us:


1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
