Model No.:
LW108S-BGAUse:
Density of blue-green algae used for monitoring water quality.Power Supply:
Solar Powered + Li-ion BatteryMeasuring Accuracy:
Readings of ±3%, ±0.3℃, linear 0.999R2LoRaWAN Mode:
OTAA Class A/CShell Material:
ABSCertificates:
CE,ROHSCustomized Support:
OEM,ODMWarranty:

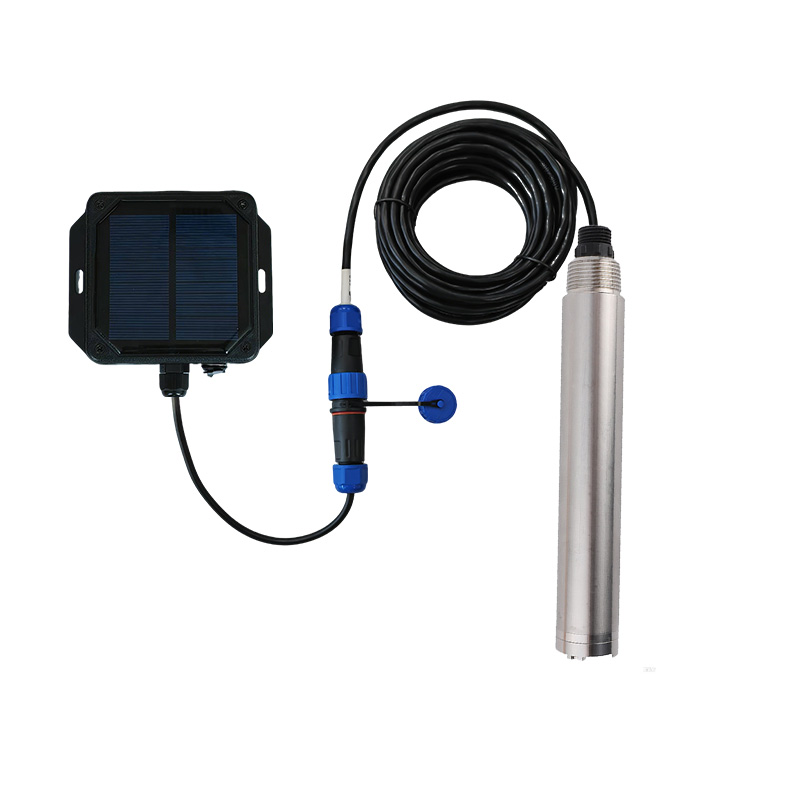

1 YearSolar LoRaWAN Blue Green Algae Water Quality Sensor
The blue-green algae sensor is a water quality monitoring device based on the principle of fluorescence optics. It achieves rapid and accurate measurement of blue-green algae concentration in water by emitting light of specific wavelengths and detecting the unique fluorescent signal emitted by phycocyanin inside blue-green algae. This non chemical reagent detection method enables in situ real-time analysis.
This sensor is widely used in real-time monitoring networks for lakes, reservoirs, and drinking water sources. Its core value lies in the ability to provide continuous and automated data, providing crucial information for early warning of algal bloom outbreaks and effectively assisting environmental management departments in ensuring water ecological security and public health.
Water Quality Solar BGA Sensor Specification:
|
Power Supply |
Solar Powered + Li-ion Battery (0.88W solar panel+3.7V/3400 mAh Li-ion battery) |
|
|
LW108S Weight |
230g |
|
|
Measuring Principle |
fluorimetric method |
|
|
Working Conditions |
0~40℃,≤0.2MPa,pH:4~10 |
|
|
Range and Resolution |
0~300.0 Kcells/mL |
0.1 Kcells/mL |
|
Resolution |
Readings of ±3%, ±0.3℃, linear 0.999R2 |
|
|
Temperature Compensation |
Automatic temperature compensation (Pt1000) |
|
|
Electrode Usage Cycle |
6-12 months |
|
|
Transmitter Line length |
Default 5m (other lengths can be customized) |
|
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
|
Mode |
OTAA Class A/C |
|
|
Reporting cycle |
30 min(Default ) |
|
|
Battery Life |
≥3 years(Based on normal use conditions) Note: Due to the high power consumption of ion sensor, it is not recommended to use short cycle data reporting. |
|
|
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
|
|
Equipment information (Reference) |
AppEUI:331341E186891989 DevEUI:aaaa202404150001 AppKey:5572404c696e6b4c6f526132330313823 MAC Version: LoRaWAN 1.0.3 |
|
Packaging:
Single gross weight: 1.200 KG
Single package size: 37X26X5 cm
Product Description:
Customer on-site examples:
Application:
This solar powered water quality blue-green algae sensor is an ideal choice for field water monitoring. It relies on the autonomy of solar power supply and can be flexibly deployed in areas without electricity such as lakes, reservoirs, and drinking water sources, achieving all-weather and continuous monitoring of blue-green algae concentration. Its core value lies in providing early warning for algal blooms, effectively assisting environmental protection departments in remotely controlling water quality dynamics, and ensuring water environment safety and public health.
Certifications:
We are one of the best solar powered blue green algae sensor manufacturers and exporters in China with over 10 years of experience. Our solar blue green algae sensors are CE and RoHS certified.
