LoRaWAN solar water quality  total hardness sensor

LoRaWAN solar water quality total hardness sensor is an "all-around player" that can handle water quality data collection, real-time monitoring, and wireless transmission in one go, and is particularly energy-efficient, making it an energy-saving expert in IoT devices.

The patented calcium magnesium ion electrode has an internal reference solution that slowly seeps out from the microporous salt bridge under a pressure of at least 100KPa (1Bar). This reference system is very stable, and the electrode life is longer than that of ordinary industrial electrodes. In addition, with the function of automatic temperature adjustment, it is particularly suitable for long-term 24-hour online monitoring of water quality.

In addition, it supports the standard LoRaWAN protocol, with a long signal transmission distance, making it easy to "send" data to distant receiving ends, which is convenient and efficient.

LoRaWAN water hardness sensor is a wireless sensor used to measure the calcium ion content in waterLoRaWAN water hardness sensor is a wireless sensor used to measure the total hardness (measured as CaCO3) in water.

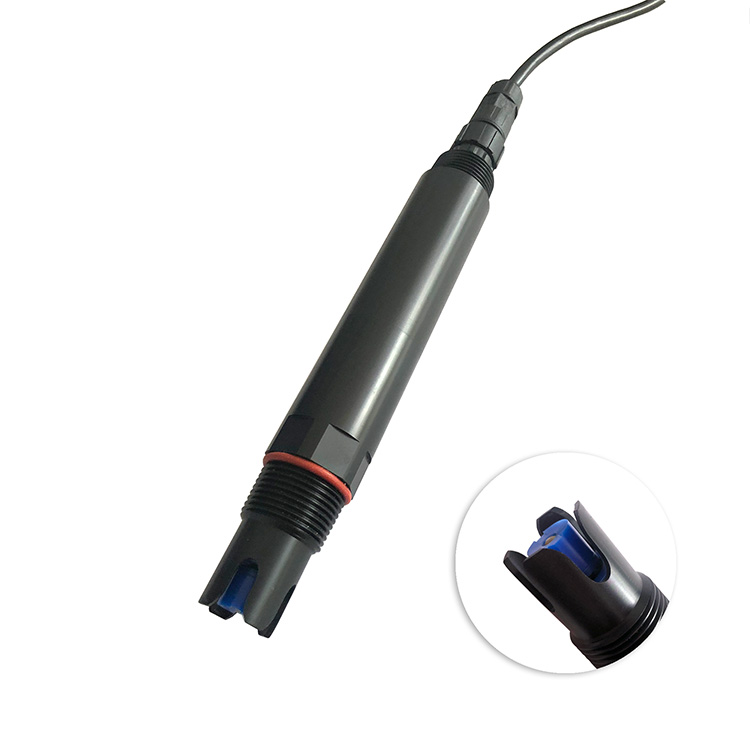

Functional features: LoRaWAN water hardness sensor is made of PVC film based calcium magnesium selective electrode, used for testing the total hardness in water (calculated as CaCO3), with temperature compensation to ensure fast, simple, accurate and economical testing.

Environmental adaptability: This sensor comes with temperature compensation function, which can effectively overcome the interference of environmental temperature changes on measurement results. Even in complex and changing environments, it can work stably.

Data accuracy: With automatic temperature compensation technology, it is less affected by external environment and can output more accurate and reliable water hardness detection data compared to ordinary sensors, providing strong basis for subsequent decision-making.

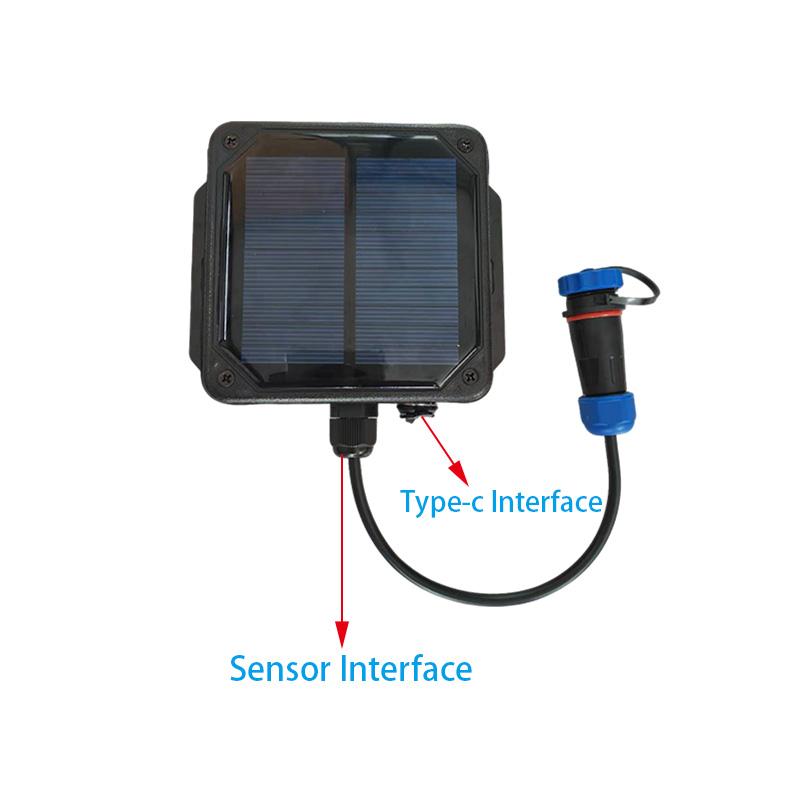

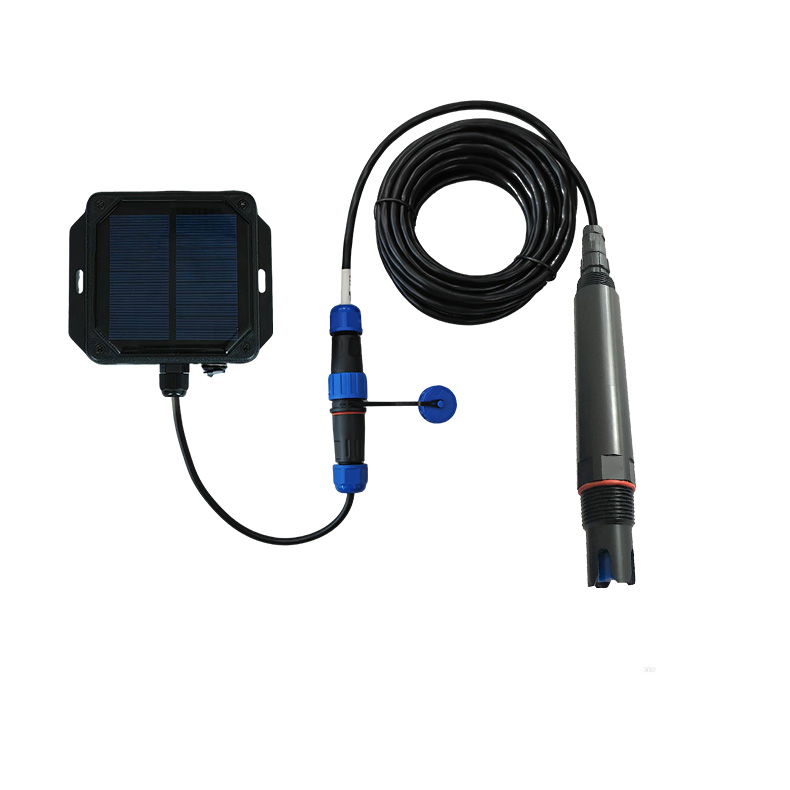

Connection method: The sensor and LoRaWAN collector are connected through an aviation connector. This connection method is simple and fast, and does not require complex operations during installation, making it easy to complete device docking.

Transmission advantage: Adopting LoRaWAN wireless communication design, after connecting sensors and collectors, stable data transmission can be achieved without laying a large number of cables, greatly reducing construction costs and maintenance difficulties.

Application scenarios: Its scope of application is very wide, whether it is industrial wastewater discharge monitoring, surface water, drinking water, seawater quality testing, or ion online analysis in industrial production processes, it can play an important role.

Water Quality Solar Total Hardness Sensor Specification:

---

Packaging:

Single gross weight: 1.200 KG

Single package size: 37X26X5cm

Product Description:

---

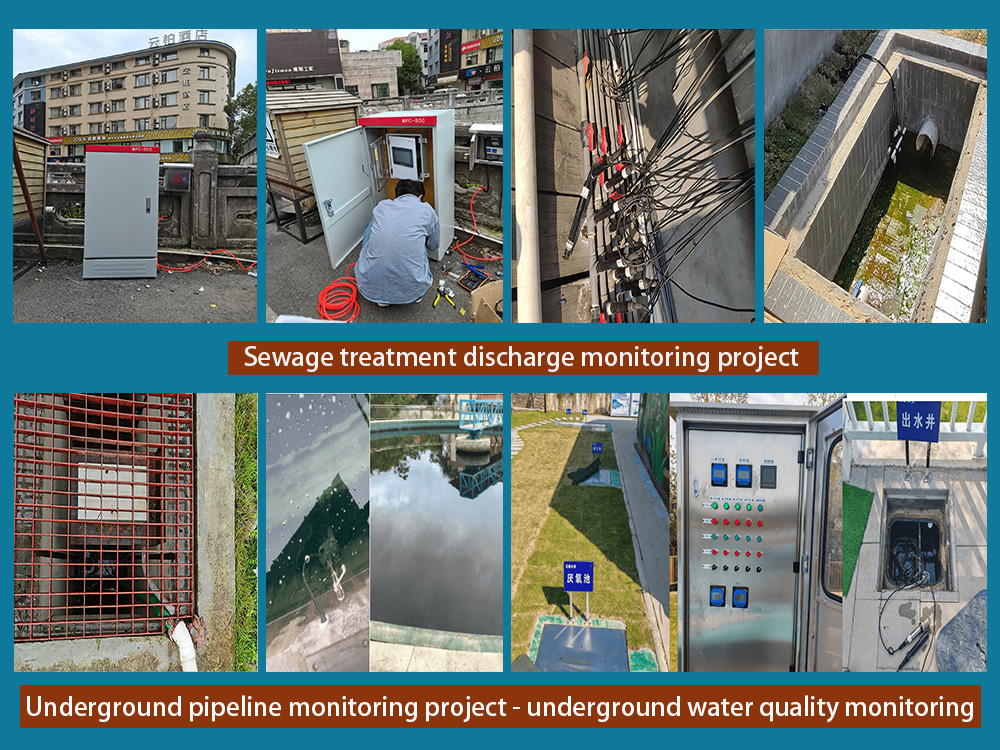

Customer on-site examples:

---

Application:

---

This LoRaWAN solar water hardness tester is designed for real-time monitoring of total hardness in water (measured as CaCO3), equipped with efficient solar modules that do not require frequent battery replacement and can have long-term endurance; It can automatically counteract temperature and pressure interference and maintain high measurement accuracy. By connecting the LoRaWAN collector with a waterproof aviation connector, long-distance low-power wireless transmission can be achieved, solving the problems of difficult wiring and expensive maintenance of traditional wired devices. It can be used for monitoring industrial circulating water, municipal drinking water, surface water, and agricultural irrigation water, providing all-weather automatic continuous data support.

Certifications

---

We are best solar water quality total hardness sensor manufacturer and exporter in China with more than 10 years. Our solar water quality total hardness sensor products are certified  with of CE, ROHS.

Production Process:

---

Why choose us:

---

1. Strong R & D: 30+ Senior experts and highly educated personnel formed a R & D team, heavy investment, master a number of core technologies and patents.
2. Professional and effective solutions: for smart environmental protection, agriculture and other fields, to provide customized compound networking solutions.
3. Full range of products: covering the whole industry chain products from data collection to platform services to meet diverse needs.
4. Excellent quality: we have perfect quality control system, strictly quality control each production link, low defective rate.
5. Good service: 7×24 hours fast response, Professional pre-sale, sale, after-sales team support.
