Model No.:
LW105S-TBUse:
Used for water turbidity detectionPower Supply:
Solar Powered + Li-ion BatteryMeasuring Accuracy:
± 3% or ± 2NTULoRaWAN Mode:
OTAA Class A/CShell Material:
ABSCertificates:
CE,ROHSCustomized Support:
OEM,ODMWarranty:
1 YearWide Range Solar LoRaWAN Water Quality Turbidity Sensor

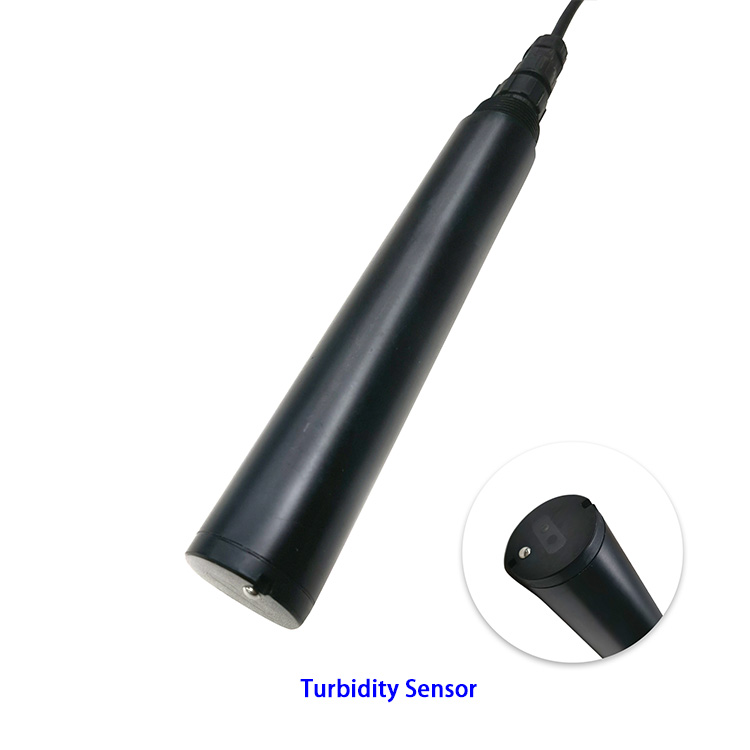

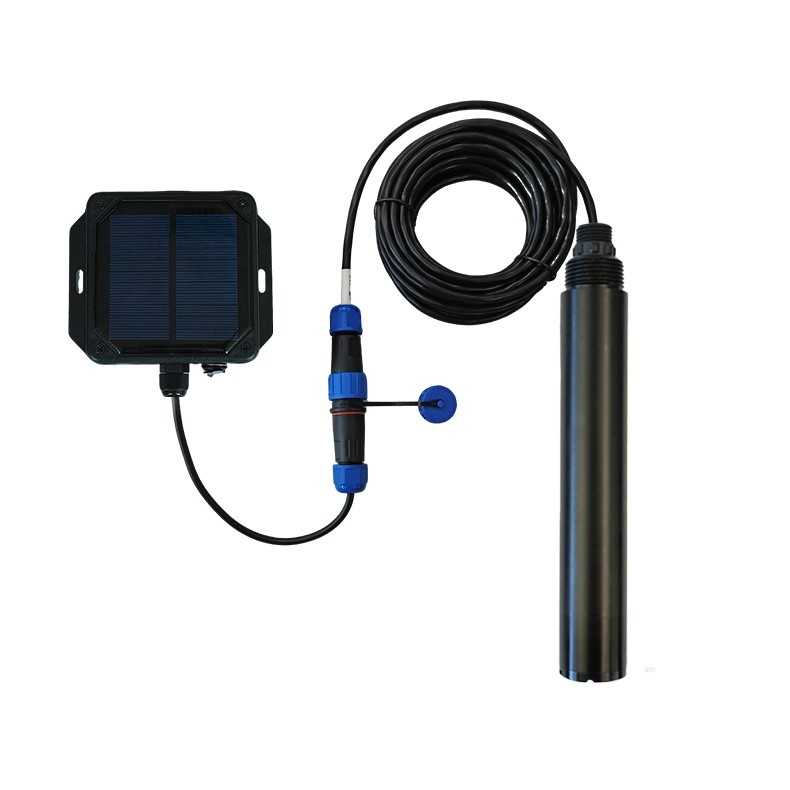

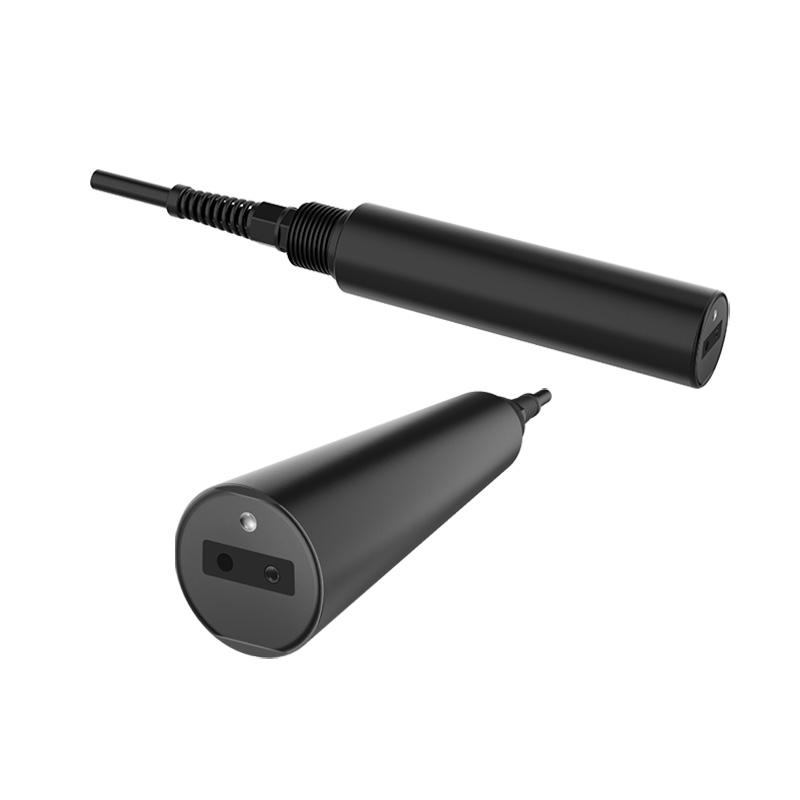

Solar turbidity sensor is an intelligent device that uses optical principles to automatically detect the turbidity of water bodies. It accurately measures the scattering intensity of light by suspended solids in water through a built-in sensing unit and converts it into accurate turbidity data.
With the help of solar power supply and wireless transmission technology, it completely breaks free from the constraints of traditional wiring, achieving energy self-sufficiency and remote data interconnection. This feature makes it an ideal solution for long-term, unmanned water quality monitoring in outdoor environments such as rivers, lakes, and reservoirs.
Water Quality Solar Turbidity Sensor Specification:
Power Supply | Solar Powered + Li-ion Battery | |
Weight | 230g | |
Operating Temperatureworking conditions |
0~40℃,<0.2MPa |
|
Range and Resolution | 0~20.00NTU, 0.01NTU/0.1℃ | |
0~200.0NTU, 0.01NTU/0.1℃ |
||
0~1000.0NTU, 0.1NTU/0.1℃ |
||
Accuracy |
± 3% or ± 0.3NTU (0-20.00NTU) ± 3% or ± 2NTU (0-200.0 NTU) ± 5% or ± 3NTU (0-1000.0NTU) ±0.3℃ |
|
Temperature Compensation |
Automatic temperature compensation (Pt1000) |
|
Electrode usage cycle | 12 months | |
Transmitter Line Length |
Default 5m (other lengths can be customized) |
|
Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | |
Mode | OTAA Class A/C | |
Reporting cycle | 30min(Default) | |
Communication Protocol | LoRaWAN | |
Equipment information (Reference) |
AppEUI: 0000000000000001 DevEUI: aaaa202404150001 AppKey: 00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |

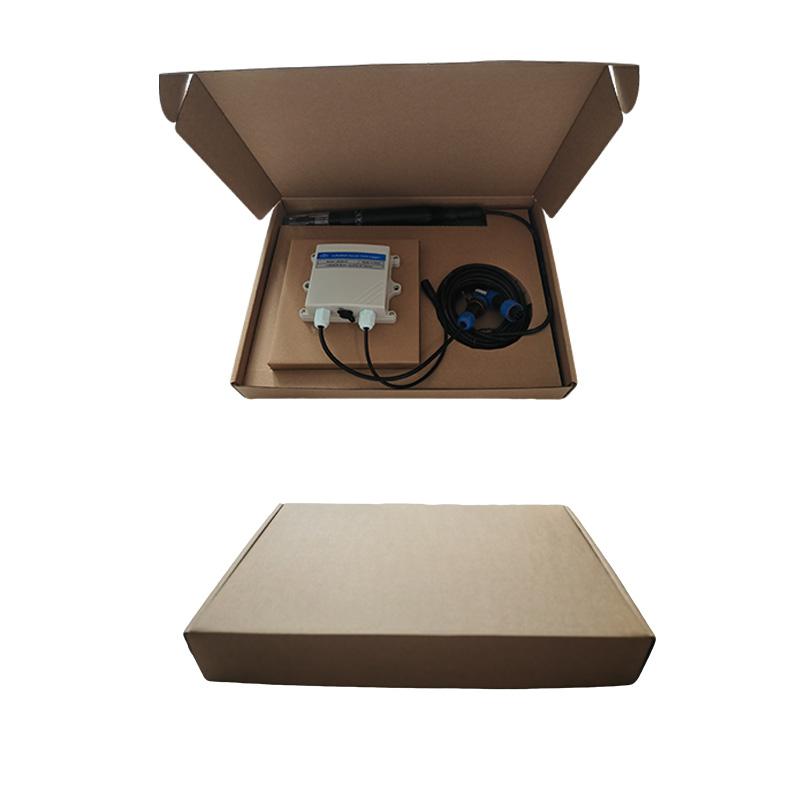

Packaging:
Single gross weight: 1.200 KG
Single package size: 37X26X5cm
Product Description:
Application:
Solar turbidity sensors are powerful tools for field water quality monitoring. It can be widely deployed in rivers, lakes, reservoirs and offshore areas without power supply by virtue of the solar driven unattended working mode, realizing long-term, continuous and automatic monitoring of water turbidity, and providing vital real-time data support for environmental protection, hydrology and water conservancy, aquaculture and other fields.
Certifications
We are best solar water quality turbidity(TB) sensor manufacturer and exporter in China with more than 10 years. Our solar water turbidity(TB) sensor products are certified with of CE, ROHS.
Production Process:
Why choose us:
