Model No.:
LW100S-ECUse:
Used for monitoring conductivity in water qualityPower Supply:
Solar Powered + Li-ion BatteryMeasuring Accuracy:
0.1 μ s/cmLoRaWAN Mode:
OTAA Class A/CShell Material:
ABSCertificates:
CE,ROHSCustomized Support:
OEM,ODMWarranty:
1 Year

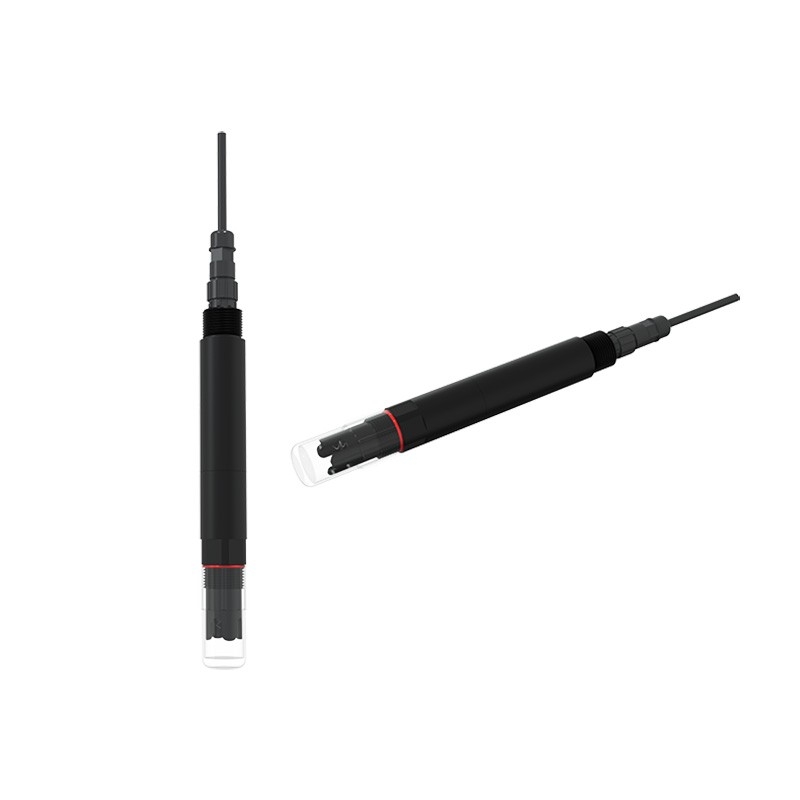

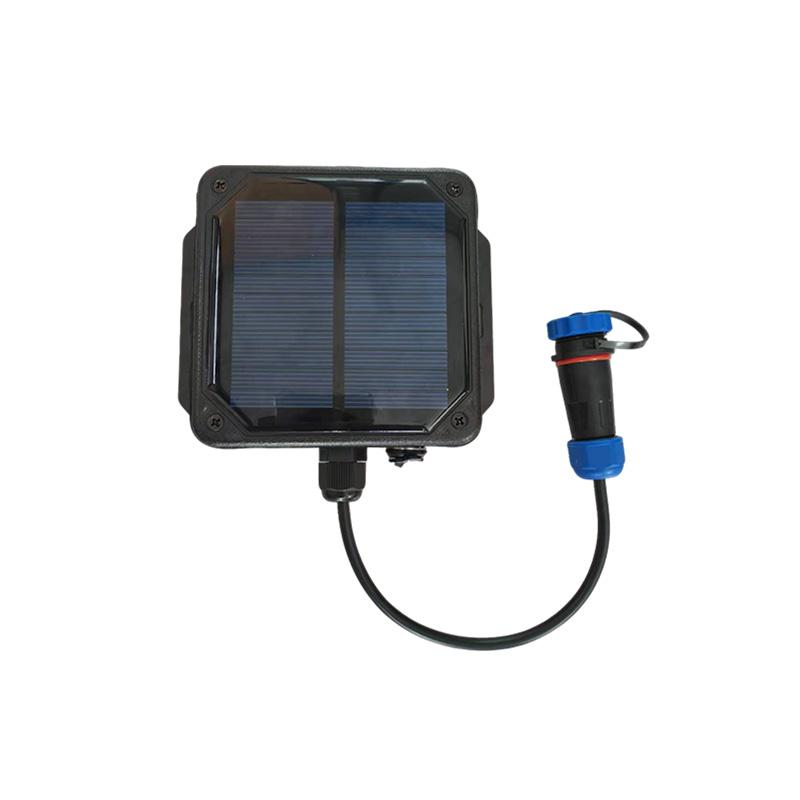

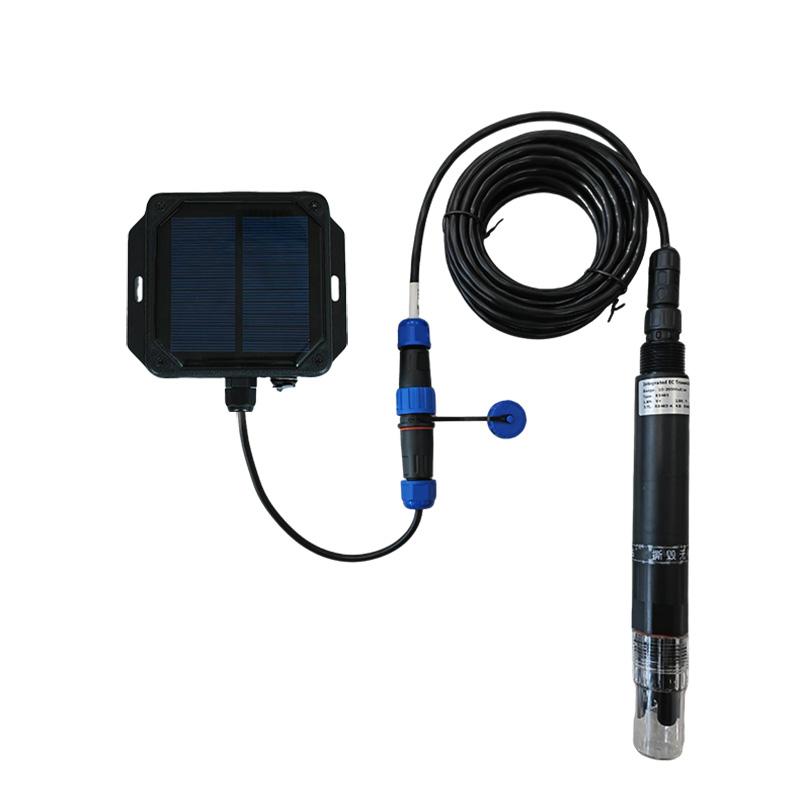

Wireless Transmission LoRa Solar Water Quality EC Sensor
This sensor is powered by solar energy and does not require wiring, allowing for wireless remote monitoring of soil or water salinity (EC value). Widely used in the fields of smart agriculture irrigation, water fertilizer integration, and environmental water quality monitoring, it is a reliable tool for achieving precise management.
This product integrates efficient solar power supply and low-power technology, completely solving the energy and wiring problems in field monitoring. Its wireless transmission data is stable and supports long-term unmanned operation, greatly reducing deployment and maintenance costs.
Water Quality Solar EC Sensor Specification:
Power Supply | Solar Powered + Li-ion Battery | |
Unit weight with probe | 230g | |
Operating Temperature | -20~+80℃ | |
Sensor parameters |
Temperature:-5~+80℃ | |
EC: Electrode constant K=1:1~2000us/cm Electrode constant K=10:10~20000us/cm |
||
Salinity: Electrode constant K=1:0~1000mg/L |
||
Typical AccuracyTypical AccuracyTypical Accuracy |
Temperature:±0.1℃ |
|
EC: Electrode constant K=1:0.1 μ s/cm; |
||
Salinity: - |
||
Temperature Compensation Range | -5~+80℃ (default compensation temperature is 25℃) | |
Temperature Compensation Coefficient | Default 0.02 | |
EC Equipment Working Conditions |
-20~+80℃ |
|
Pressure Resistance | 0.6MPa | |
EC Transmitter |
Default 5m (other lengths can be customized) |
|
Electrode usage cycle |
1 year | |
Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 | |
Mode | OTAA Class A | |
Reporting cycle | 30min(Default ) | |
Communication Protocol | LoRaWAN, LoRa TDMA Networking | |
Equipment information (Reference) |
AppEUI: 0000000000000001 DevEUI: aaaa202404150001 AppKey: 00001111222233334444555566667777 MAC Version: LoRaWAN 1.0.3 |
Packaging:
Single gross weight: 1.200 KG
Single package size: 37X26X5cm
Product Description:
Customer on-site examples:
Application:
The solar EC sensor is an ideal tool designed for field monitoring, which does not require an external power source and can measure the conductivity of soil or water in real time through solar power supply. It is widely used in the fields of smart agriculture, environmental water quality monitoring, and scientific research, providing reliable data support for precision irrigation, water quality assessment, and ecological research.
Certifications
We are best solar water quality EC sensor manufacturer and exporter in China with more than 10 years. Our solar water ec sensor products are certified with of CE, ROHS.
Production Process:
Why choose us:
Want to know about this product?
If you are interested in our products and want to know more details, please leave a message here, we will reply you as soon as we can.
