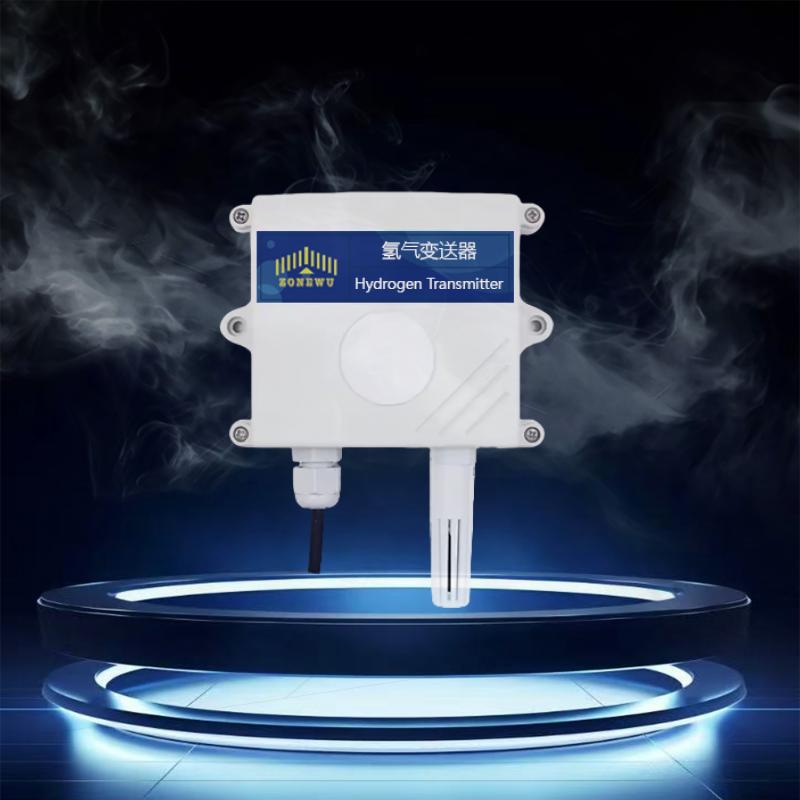

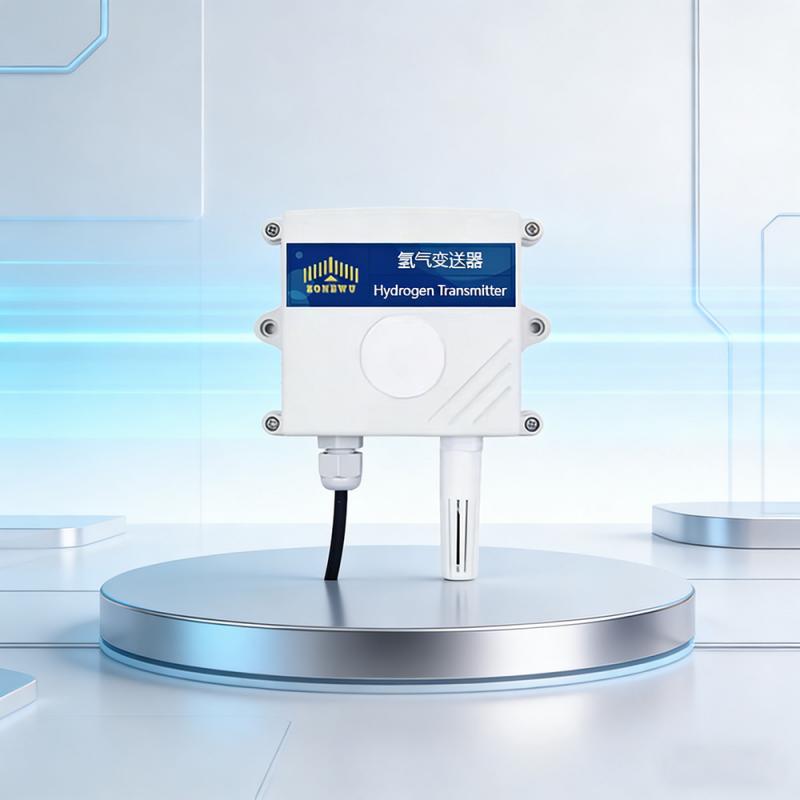

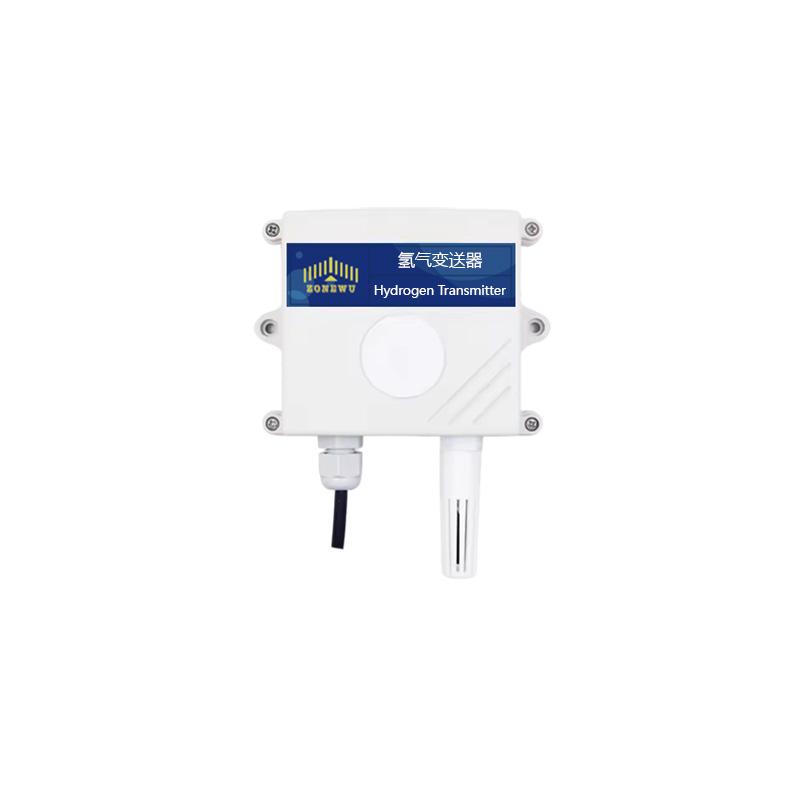

Industrial-grade RS485 Hydrogen(H2) Gas Transmitter

ZONEWU RS485 Hydrogen Transmitter Key Applications & Use Cases

1.Industrial Hydrogen Production Workshop Monitoring: Ideal for hydrogen preparation units, pipeline junctions and other areas. Supports 10~30V DC power supply, with a measurement range covering 0-1000ppm/0-40000ppm; the RS485 output signal can be connected to the workshop monitoring system. It tolerates the working environment of -20~50℃, 15~90%RH (no condensation), and the ±5%FS measurement accuracy can capture leakage risks in time to ensure production compliance.
2.Hydrogen Energy Storage Facility Safety Control: Suitable for hydrogen storage tank areas, storage cabinets and other scenarios. It has a low-power design of 0.9W (RS485 mode), with a measurement resolution of 1ppm to feed back concentration data in real time; it also supports wide temperature storage environment compatibility of -40~+80℃, and the signal stability of ≤2% signal value/month reduces the calibration frequency during long-term operation and cuts maintenance costs.
3.Laboratory Hydrogen Application Environment Monitoring: Applied around hydrogen-related experimental equipment in laboratories. It has a response time of ≤70s (1000ppm) to quickly detect concentration changes; it also has a temperature auxiliary monitoring accuracy of ±0.5℃ (25℃), and its anti-interference performance adapts to the complex electromagnetic environment of the laboratory. CE/ROHS compliance meets laboratory safety standards.
4.Hydrogen Leakage Early Warning in Chemical Warehousing Areas: Adapted to warehousing areas where chemicals are mixed and stored. Supports multiple signal outputs such as 4-20mA/0-5V/0-10V, which is compatible with different warehouse monitoring terminals; integrated humidity compensation function maintains data accuracy in 0~100%RH humidity environment. Wireless remote data transmission (combined with supporting modules) reduces on-site wiring and improves the deployment flexibility of the warehousing area.
