ZONEWU LoRaWAN Oxygen Sensor is a cutting-edge wireless IoT gas sensor that integrates data acquisition, monitoring, and transmission capabilities. Combining a three-electrode electrochemical gas sensor with a high-performance microprocessor, it enables real-time ozone concentration tracking in environments. The built-in temperature and humidity sensors ensure precise detection of ambient conditions. This device delivers high sensitivity, superior resolution, compact size, low power consumption, robust stability, and exceptional interference resistance. Powered by the LoRaWAN protocol for long-range wireless transmission, it is ideal for industrial applications including environmental monitoring, manufacturing processes, agricultural operations, transportation systems, and indoor surveillance scenarios.
Model No.:
LW309-O3Use:
Nitrogen O3 TransmitterPower Supply:
5~28VDCLoRaWAN Mode:
OTAA Class A/C (Default: Class C)Certificates:
CE,ROHS,FCC,ISO and 11 patents certificationsCustomized Support:
OEM, ODMWarranty:

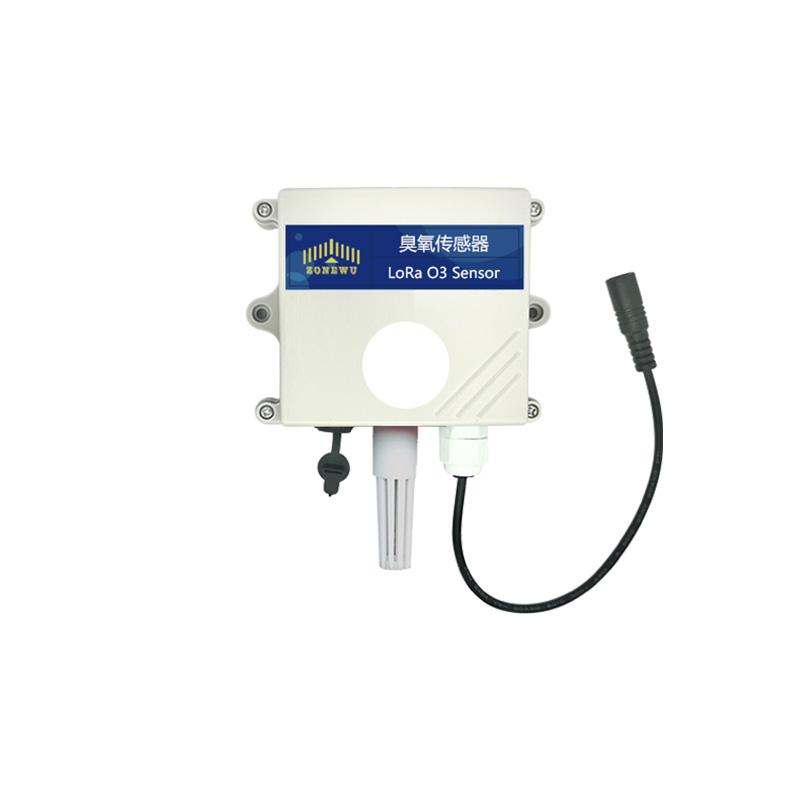

1 YearZONEWU High Sensitivity LoRaWAN Ozone (O3) Gas Sensor
ZONEWU High Sensitivity LoRaWAN Ozone (O3) Gas Sensor
Core Product Overview
A professional wireless ozone monitoring device tailored for real-time concentration detection in outdoor and industrial environments. It combines advanced electrochemical sensing technology with LoRaWAN low-power wide-area network capabilities, providing a reliable, low-maintenance solution for continuous ozone level tracking that meets the strict standards of European and American markets.
Key Performance Advantages
1.Exceptional sensitivity enables accurate capture of trace ozone levels, with strong anti-interference performance that minimizes data deviations caused by temperature and humidity fluctuations
2.LoRaWAN wireless connectivity eliminates complicated wiring work, significantly reducing on-site installation costs and labor input
3.Ultra-low power consumption supports battery-powered operation, allowing long-term deployment in remote or off-grid areas without relying on mains power
4.Industrial-grade weatherproof housing ensures stable operation in harsh conditions, resisting dust, condensation and extreme temperatures
Intelligent Remote Management
1.Supports remote device configuration, real-time data uploading and historical data tracking for convenient centralized management
2.Seamlessly integrates with mainstream LoRaWAN servers and IoT platforms, enabling threshold alarm notifications and intuitive data visualization
3.Meets the data recording and compliance requirements of environmental monitoring and industrial safety management systems
Versatile Application Scenarios
1.Urban air quality grid monitoring and industrial emission port ozone level tracking
2.Ozone leakage detection in chemical, pharmaceutical and water treatment facilities
3.Concentration control for ozone disinfection in agricultural greenhouses and food storage warehouses
4.Ozone level supervision in hospital sterilization areas and laboratory environments
Global Compliance Certification
1.Complies with EU RoHS and CE standards, as well as US FCC certification requirements
2.Compatible with local LoRaWAN frequency bands in Europe and America, facilitating quick integration into regional IoT ecosystems for global customers
O3 Sensor Specification:
|
Power Supply |
5~28VDC |
|
Weight |
120g |
|
Operating Emperature |
-20℃～50℃ |
|
Humidity: 15%~ 90% RH without condensation NOTE: It is not recommended to stay in a high humidity (95%) environment for more than half a month |
|
|
Measuring Principle |
Electrochemical Principle |
|
Measuring Range |
O3: (0-10)ppm |
|
Resolution Ratio |
O3: 0.1 ppm |
|
Temp.and Humi. Sensor
|
Temp Range:-40~+80 ℃ |
|
Accuracy:±0.3 ℃ |
|
|
Humi Range:0~99.9 %RH |
|
|
Accuracy:±2 %RH |
|
|
Sensor Lifespan |
< 2 years |
|
Frequency |
CN470/IN865/EU868/RU864/US915/AU915/ KR920/AS923-1&2&3&4 |
|
Mode |
OTAA Class A/C(Default: Class C) |
|
Reporting cycle |
5 min(Default reporting cycle) Report after preheating for 3 minutes when powered on |
|
Communication Protocol |
LoRaWAN,LoRa TDMA Networking |
|
Equipment information (Reference) |
AppEUI：0000000000000001 DevEUI：aaaa202404150001 AppKey：00001111222233334444555566667777 MAC Version：LoRaWAN 1.0.3 |
Packaging:
Single gross weight: 0.600 KG
Single package size: 23X20X5 cm
Application:
The High precision O3 sensor also widely used for gas monitoring of Chemical production, Ward monitoring, Vegetable greenhouse, Livestock and poultry farms, Tunnel monitoring, Cold chain logistics vehicle, Cold storage monitoring, Biosafety laboratory.
Certifications:
1.10+ years of experience as a leading gas sensor manufacturer and exporter in China
2.Specialized in high-performance, industry-grade gas detection solutions
3.Flagship ozone (O3) sensors engineered for precise, real-time concentration monitoring
4.Full compliance with CE and RoHS certifications, meeting strict European regulatory standards
5.Seamless global market access, eliminating cross-border procurement regulatory barriers
